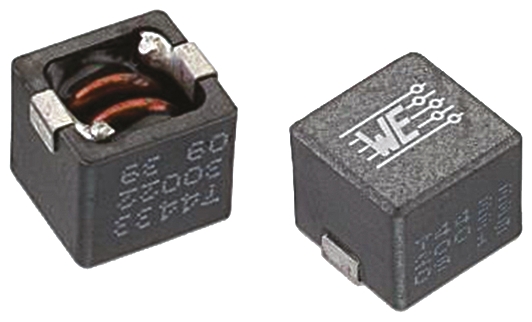

Wurth WE-SL2 Series – Wire-wound SMD Inductor with a Ferrite Core, 500 μH ±50% Dual 1A Idc

Description

Maximum Current: 1 A

Dimensions: 9.2 x 6 x 5mm

Mounting Type: Surface Mount

Voltage Rating: 80V

Series: WE-SL2

Operating Temperature Range: -40°C → +125°C

Termination Style: Surface Mount

Length: 9.2mm

Height: 5mm

Test Frequency: 1 KHz

Depth: 6mm

Inductance: 2 x 500 μH

Maximum Operating Temperature: +125°C Minimum Operating Temperature: -40°C DC Resistance: 2 x 0.15Ω

This is Wurth WE-SL2 Series – Wire-wound SMD Inductor with a Ferrite Core 500 μH ±50% Dual 1A Idc manufactured by Wurth Elektronik. The manufacturer part number is 744223. It also carries 1 a maximum current. The given dimensions of the product include 9.2 x 6 x 5mm. The product is available in surface mount configuration. Moreover, the product has a nominal 80v voltage rating. The product we-sl2, is a highly preferred choice for users. The product has -40°c → +125°c of operating temperature range. Moreover, it has surface mount terminal style. Its accurate length is 9.2mm. In addition, the height is 5mm. It features a test frequency of 1 khz. The product comes in 6mm depth. The product has a 2 x 500 μh inductance value. It has a maximum operating temperature of +125°c. Whereas, the minimum operating temperature of the product is -40°c. It has about 2 x 0.15ω DC resistance .
